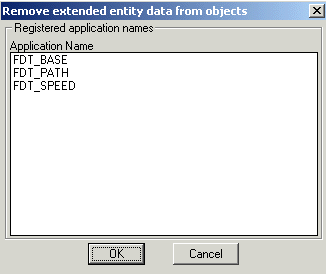

The CP_REM_XD command removes extended entity data belonging to specified applications from selected objects.
Watch:
 Toolbar : Extended Entity Tools (CP)
Menu : CADPower -> Extended Entity Data -> Rename XDATA application name attached to entities
 CmdLine : CP_XD_RENAMEAPP

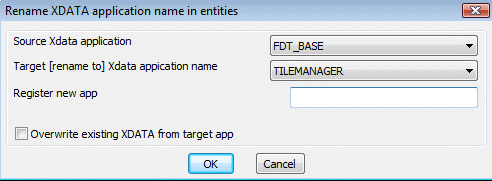

The CP_XD_RENAMEAPP command is used to change the application name in XDATA that is already attached to entities. Use this tool as a means to transfer extended entity data from one application to another.
Watch:
Toolbar : Extended Entity Tools (CP)
Menu : CADPower -> Extended Entity Data -> Search & replace extended entity data
CmdLine : CP_XD_SEARCH

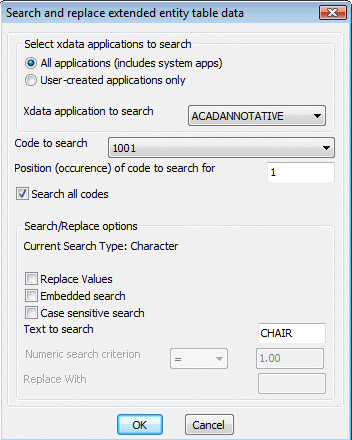

The CP_XD_SEARCH command does a search (and optional replace) of extended entity data. You can search xdata fields by code as well as by position in the xdata structure. The search type will automatically be numeric or text based on the field type being searched. When there are multiple occurrences of the same code within the xdata structure, you can specify which occurrence to be subjected to the search / replace.
Toolbar : Extended Entity Tools (CP)
Menu : CADPower -> Extended Entity Data -> Display extended entity data from picked object
CmdLine : CP_SHOWXD

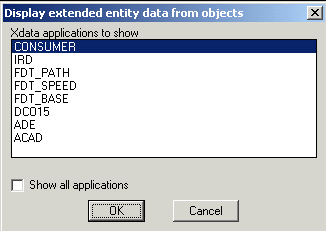

The CP_SHOWXD command displays on the command line extended entity data from a single selected object for specified application names (see dialog box).
Successive calls to this command can also be made with the shortened command version, CP_XD which will display the extended entity data without displaying the dialog box to specify the xdata application to be used. Use the full command CP_SHOWXD only if you wish to change the application names to be displayed.
Toolbar : Extended Entity Tools (CP)
Menu : CADPower -> Extended Entity Data -> Extract extended entity data to ASCII file
CmdLine : CP_XD_EXTRACT

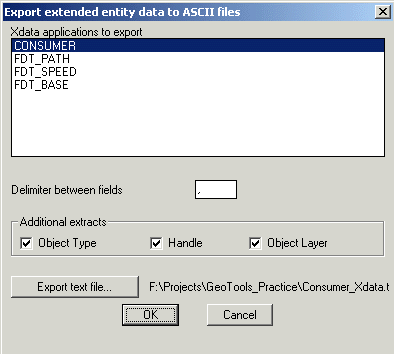

The CP_XD_EXTRACT command is used to extract extended entity data into ASCII text files. The ASCII format of the exported data is generic and designed in such a way that any third-party program can be written to read the information from this file without difficulty.
Toolbar : Extended Entity Tools (CP)
Menu : CADPower -> Extended Entity Data -> Create text labels from object data / extended entity data
CmdLine : CP_OD_XD_LABEL
The CP_OD_XD_LABEL command creates text labels from object data or xdata. The labels can be created using multiple fields with specified prefixes, suffixes etc.
In the case of extended entity data, the fields are specified based on their DXF codes applicable to xdata. The following DXF codes are allowed for labeling: 1000 (string), 1001 (string), 1040 (real) and 1070 (integer). The same xdata code can be chosen multiple times in any order. However, this order must be as per the order of xdata fields in the objects being processed.
Toolbar : Extended Entity Tools (CP)
Menu : CADPower -> Extended Entity Data -> Checks for No Xdata / Object data
CmdLine : CP_NODATA

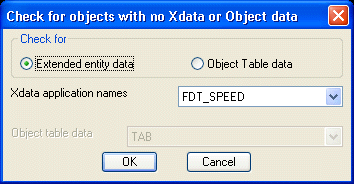

The CP_NODATA command is used to identify objects in the drawing that do not contain any object data or extended entity data belonging to selected object tables or application names respectively. This is useful in QA/QC procedures.
Toolbar : Extended Entity Tools (CP)

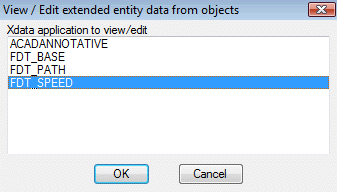

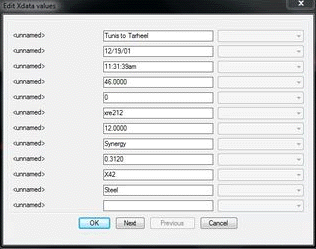

Menu : CADPower -> Extended Entity Data -> Edit XDATA in a dialog box
CmdLine : CP_EASYEED
|
