Toolbar    : Selection Tools (CP)

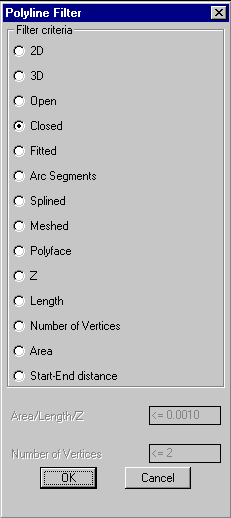

      Menu       : CADPower -> Selection -> Polylines based on properties

CmdLine  : CP_PLFILTER



Filters polylines based on their properties.

The following properties of polylines can be filtered from the selection set.

2D

3D

Open

Closed

Fitted

Arced

Splined

Meshed

Polyface

Z value

Length

Number of vertices

Area

Start-End Distance



The length, area, number of vertices or start-end distances are specified by entering < n, <= n, > n, >= n, = n, /= n where "n" is the value to check for.

Specify the numeric logical comparative operator in one of these ways.

< 'Value' - Less than 'Value'
<= 'Value' - Less than or equal to 'Value'
> 'Value' - Greater than 'Value'
>= 'Value' - Greater than or equal to 'Value'
= 'Value' - Equal to 'Value'
/= 'Value' - Not Equal to 'Value'

Enter Length / Area / Z criteria: <= 55.0
This would select all objects with the specified property less than or equal to 55.0

Notes: The Start-End distances are always measured in slope in the case of 3d polylines. The Z value check will fail if there is even one vertex in the polyline that fails to meet the criterion.



     Menu       : CADPower -> Selection -> Circles based on radius

CmdLine  : CP_CIRCFILTER

 The CP_CIRCFILTER command is used to filter circles based on their radius.


Toolbar    : Selection Tools (CP)
      Menu       : CADPower -> Selection -> Filter 3DFaces based on properties

CmdLine   : CP_3DFFILTER



The CP_3DFFILTER command filters 3dfaces based on their derived geometric properties like area or perimeter and also look for a duplicate vertex within



Toolbar    : Selection Tools (CP)

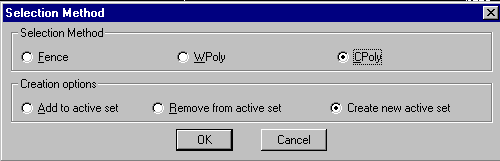

      Menu       : CADPower -> Selection -> Enhanced Entity Selector

CmdLine   : CP_ESELECT


The CP_ESELECT command allows the Fence, CrossingPoly [CP] and WindowPoly [WP] selection modes to be applied automatically along multiple polylines which serve as boundaries for the selection.



Once the boundary polylines for selection are specified, the command zooms to each polygon and applies the selection mode. The results of selection from each polyline are  combined and placed in the active selection set. This command can be used along with the CP_MAKESEL command to build very powerful selection filters.


Toolbar    : Selection Tools (CP)
      Menu       : CADPower -> Selection -> Build a selection set

CmdLine   : CP_MAKESEL

Description Pending

Toolbar    : Selection Tools (CP) (BricsCAD only)

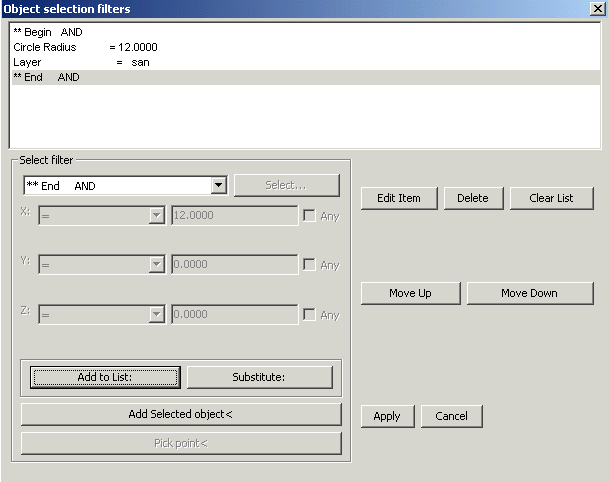

      Menu       : CADPower -> Selection -> Object selection FILTER

CmdLine   : CP_FILTER


The CP_FILTER command provides the familiar object selection command in BricsCAD. With CP_FILTER, you can build your own powerful filter criteria  using object properties, along with logical operator combinations (AND, OR or NOT).

The CP_FILTER command complements the QSELECT filter tool of BricsCAD as well as the CP_MAKESEL command of CADPower, both of which are also used for object selection and filtering, but have different approaches and interfaces.





Toolbar    : Selection Tools (CP)
      Menu       : CADPower -> Selection -> Find objects in selected Z range

CmdLine   : CP_FINDZRNG




The CP_FINDZRNG command selects all objects whose Z values fall within a specified range. This is a useful QA / QC tool.


Toolbar    : Selection Tools (CP)

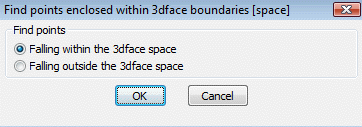

      Menu       : CADPower -> Selection -> Find points enclosed within 3dface space

CmdLine   : CP_FINDENCLOSED



The CP_FINDENCLOSED command is a means to select point objects which lie within the space bounded by selected 3dface objects. This command was created in response to the requirements of the mining industry where the mining shafts and cut-outs are often modeled using 3dface objects, with a lot of neighborhood points representing data captured from various sources. This tool helps to select all such point features which lie inside or outside the space bounded by the 3dface objects.


Toolbar    : Selection Tools (CP)
      Menu       : CADPower -> Selection -> Select current layer

CmdLine   : CP_SL


The CP_SL command selects an entity and make its layer the current layer. Alternately, you can choose layers from a dialog box


Toolbar    : Selection Tools (CP)
      Menu       : CADPower -> Selection -> Select current styler

CmdLine   : CP_SS


Select a text and make its style the current text style. Alternately, you can choose available styles from a dialog box.



Toolbar    : Selection Tools (CP)
      Menu       : CADPower -> Selection -> Put last CADPower selection in [active] 'previous' selection set

CmdLine   : CP_LASTSEL


The CP_SSET command retrieves the last created or processed objects by a CADPower command and places them in internal memory as well as in the active [previous] selection set. The active selection may be overwritten at any time using other selection commands, but the last processed results of a CADPower command are always “remembered” by this command and can always be brought back to active selection using this command.
