Toolbar     : Blocks Tools
     Menu        : GeoTools -> Blocks -> Global Attribute Editor
CmdLine   : GT_ATTEDIT

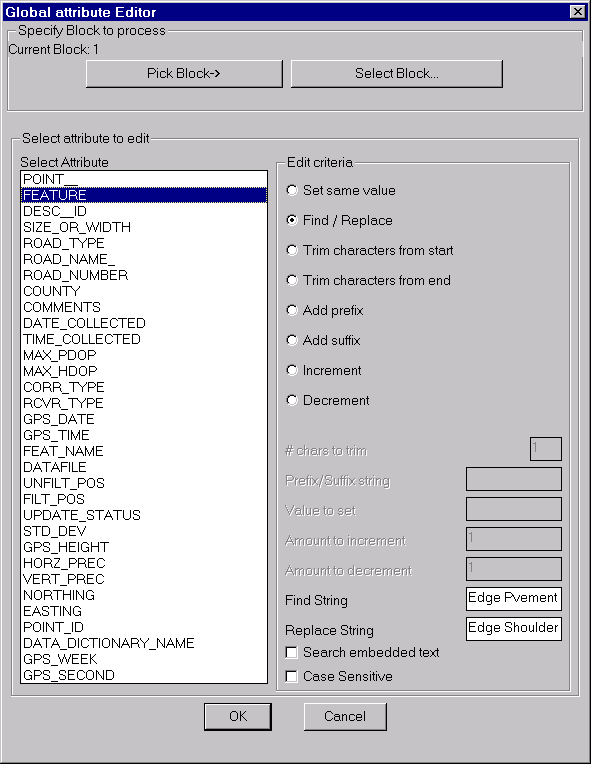

The GT_ATTEDIT performs global editing of block attributes as shown in the dialog box below.


Watch:



Toolbar     : Blocks Tools
     Menu        : GeoTools -> Blocks -> Search and replace text/attributes
CmdLine   : GT_ZOOMTXT or GT_ZT

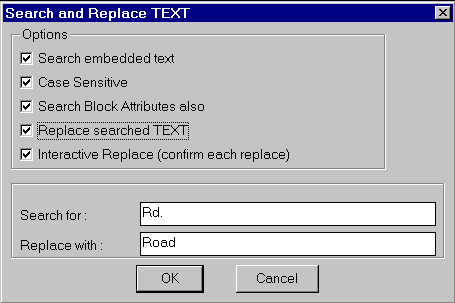

GT_ZOOMTXT is a tool for text search and replace.

Search embedded text: Enables or disables checking of embedded parts of text or attribute strings.

Case sensitive: Enables or disables case sensitive text handling.

Search Block Attributes also: Enables or disables search block attribute text.

Replace searched TEXT: If enabled, the search text string is replaced with the replace text string

Interactive Replace (confirm each replace): If enabled, each replace operation will seek confirmation before proceeding.

Search for: Enter text string to search for.

Replace with: Enter text string to replace searched string.



Toolbar     : Blocks Tools
     Menu        : GeoTools -> Blocks -> Extract Block attributes to file
CmdLine   : GT_ATTEXT




The GT_ATTEXT command extracts selected attributes from blocks along with a number of other basic properties like insertion point, X, Y scale factors, rotation angle and handle.



Toolbar     : Blocks Tools
     Menu       : GeoTools -> Blocks -> Transfer attributes between blocks
CmdLine   : GT_ATTXFER / GT_AX


The GT_ATTXFER command transfers attributes from one block to another. You can specify the source attribute tag name and the target attribute tag name to transfer or let GT_ATTXFER do an automatic transfer of all attributes of the same name between source block and target block.



The GT_ATTXFER command brings up the dialog box each time for setting the parameters. To go directly to the command, use the GT_AX command at the command prompt.



Toolbar      : Blocks Tools
     Menu         : GeoTools -> Blocks -> Transfer text strings to block attributes
CmdLine   : GT_TXT2ATT

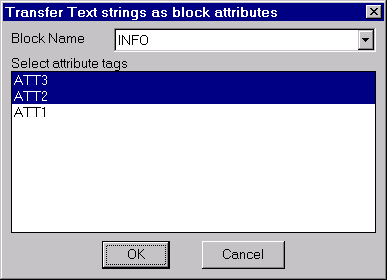

The GT_TXT2ATT command is used to transfer text strings as block attributes. Using this command, you can select a block name and specify the attributes you wish to transfer. Each attribute will then be populated with selected text strings.



Toolbar     : Blocks Tools
     Menu        : GeoTools -> Blocks -> Transfer attribute data to CAD properties
CmdLine   : GT_ATT2PROP


Description Pending



Toolbar     : Blocks Tools
     Menu        : GeoTools -> Blocks -> Transfer CAD properties to Blocks Attributes
CmdLine   : GT_PROP2ATT

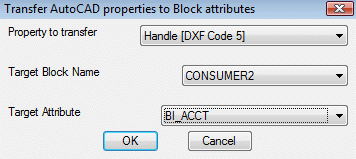

The GT_PROP2ATT command allows object properties from blocks to be transferred as attribute data.



The following properties can be transferred:

Insertion point (DXF Code 10)
Block Name (DXF Code 2)
Handle (DXF Code 5)
Layer (DXF Code 8)
Rotation Angle (DXF Code 50)
Color (DXF Code 62)
Flag (DXF Code 70)
Elevation[Z] from DXF Code 10
X Scale Factor
Y Scale Factor



Toolbar     : Blocks Tools
     Menu        : GeoTools -> Blocks -> Rename block attribute tags, prompts and defaults
CmdLine   : GT_TAGREN

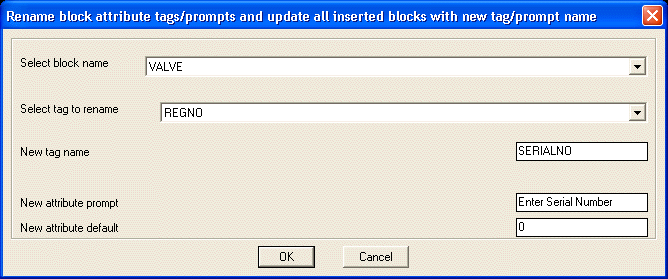

The GT_TAGREN command is used to rename block attribute tags, defaults and prompts. While renaming tag names, the command ensures that any re-positioned attributes (moved manually from their default locations) will be retained at their existing locations.




Toolbar     : Blocks Tools
     Menu        : GeoTools -> Blocks -> Delete block attribute tags from block definition
CmdLine   : GT_TAGDEL

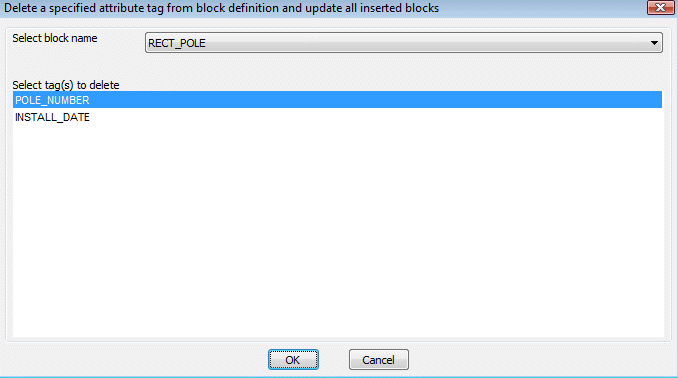

The GT_TAGDEL command is an block definition management tool used to delete attribute tags from a block definition and update all inserted blocks with the new block definition.




Toolbar     : Blocks Tools
     Menu        : GeoTools -> Blocks -> Update 'Coordinates Block' attributes
CmdLine   : GT_UPDATEPOINTBLK

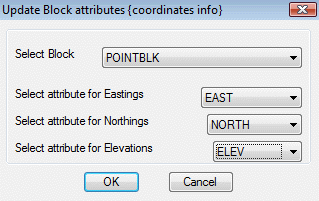

Surveyors often use a point block containing Easting, Northing, Elevation as attributes. You can populate such attributes using the GT_UPDATEPOINTBLK command.
